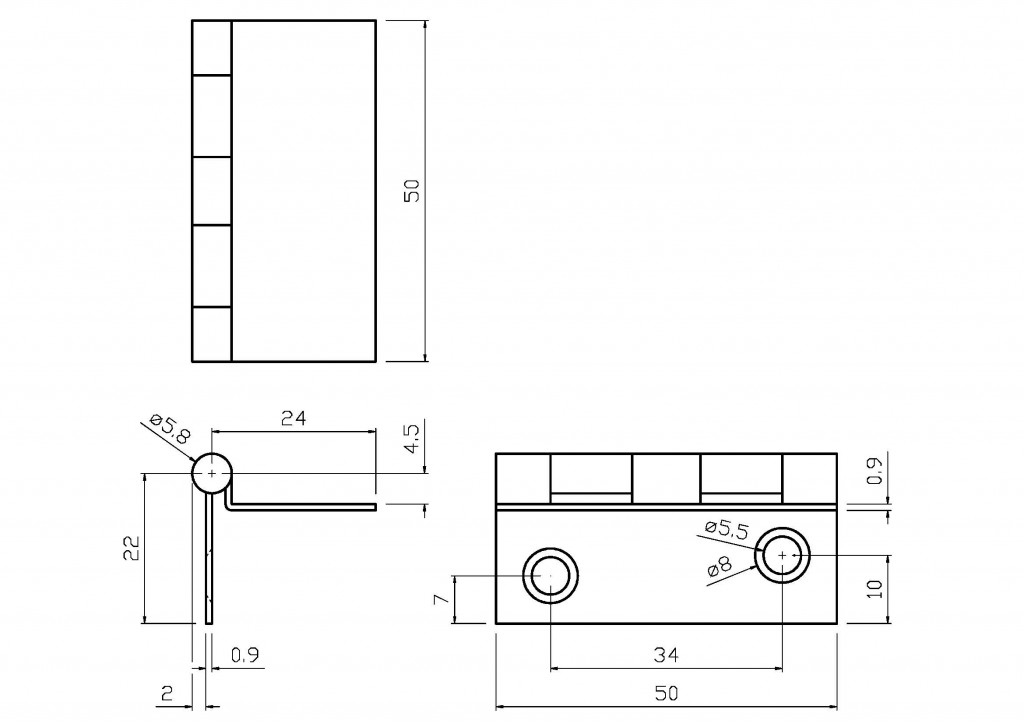

4880 Locker Hinge for Inset Doors – 50mm
A 50mm Locker Hinge for Inset Doors. Suitable for steel doors and self colour for painting. Fixing with rivets or screws (not supplied) and spot welded.
Features & Benefits
- Made in Britain
- Easy and simple to fit
- Quality Materials
These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.
Size |
50mm |
| Length | 50mm |
| Door Leaf Width | 21mm |
| Thickness | 0.9mm |
| Fixing Holes | 2 |
| Fixing Size | 4mm |
| Self Colour | TEL: 4880 0 22 01 |
| Bulk Packed | 500 |
| Max. load (2 hinges fitted) | 5kg |
| Max. load (3 hinges fitted) | 7.5kg |
| Material | Mild Steel |
TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
