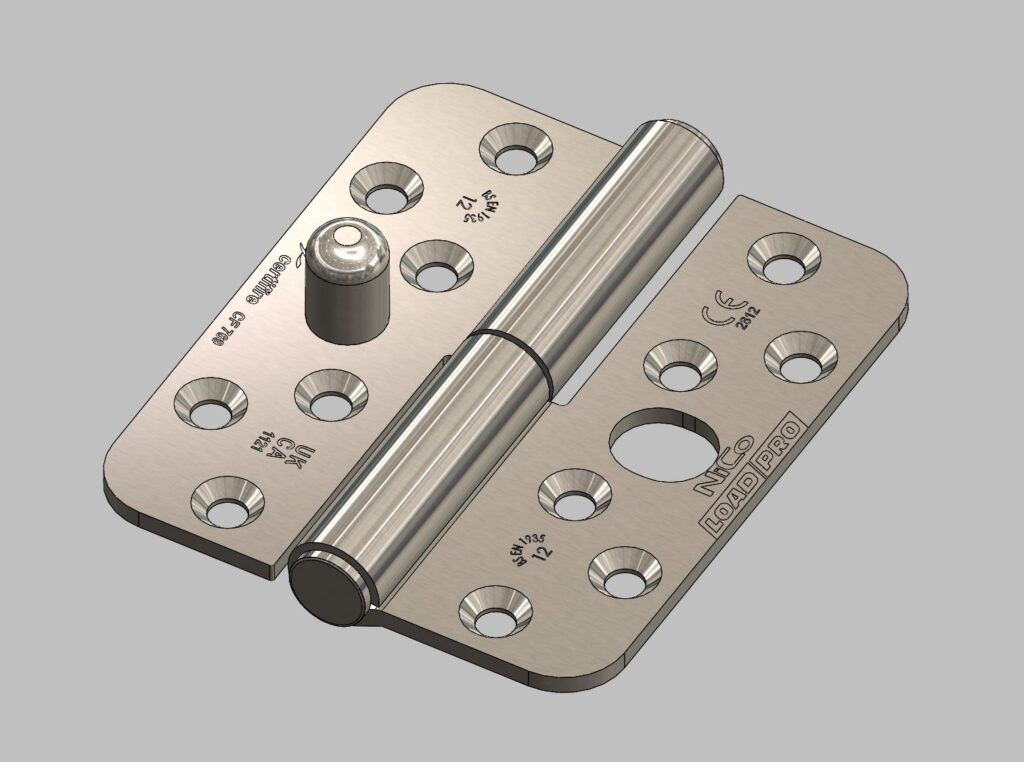

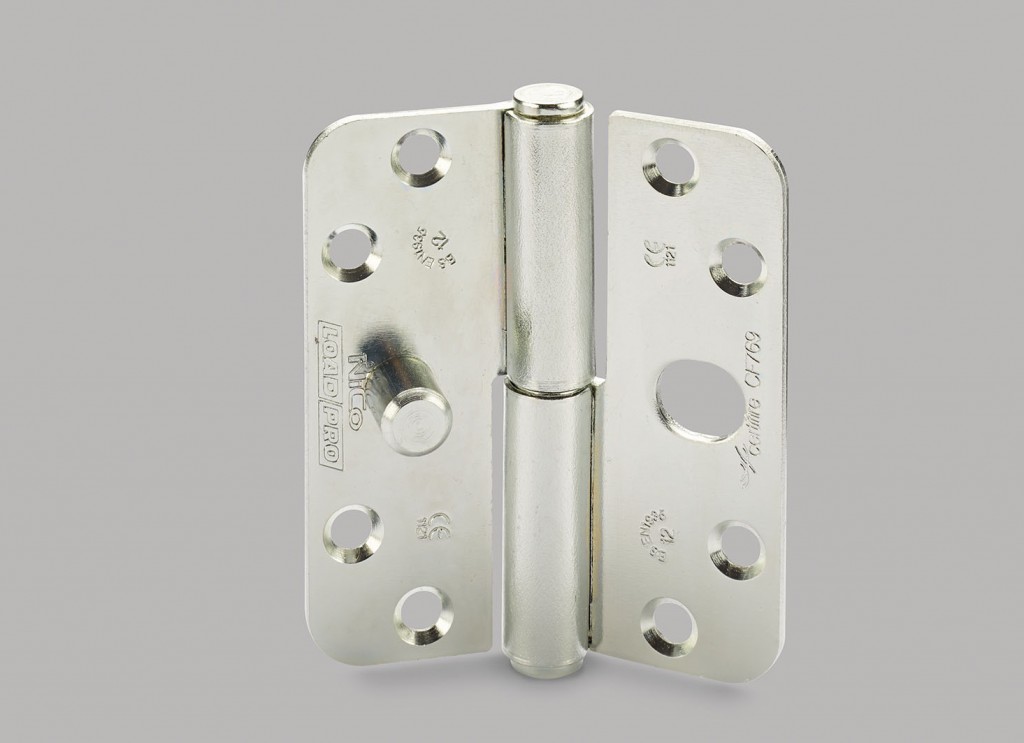

4718 Maintenance Free Grade 12 Security Lift Off Hinge

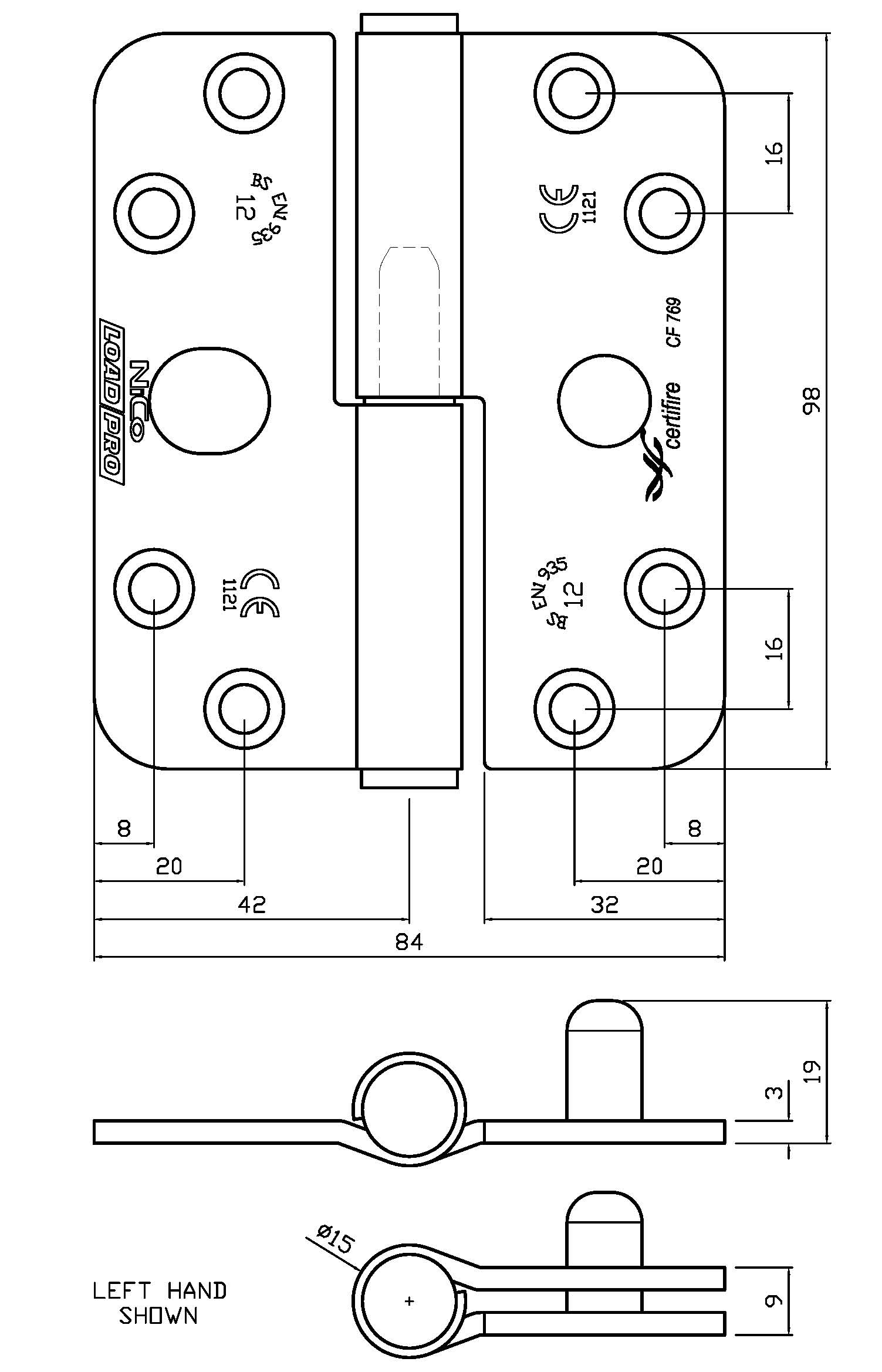

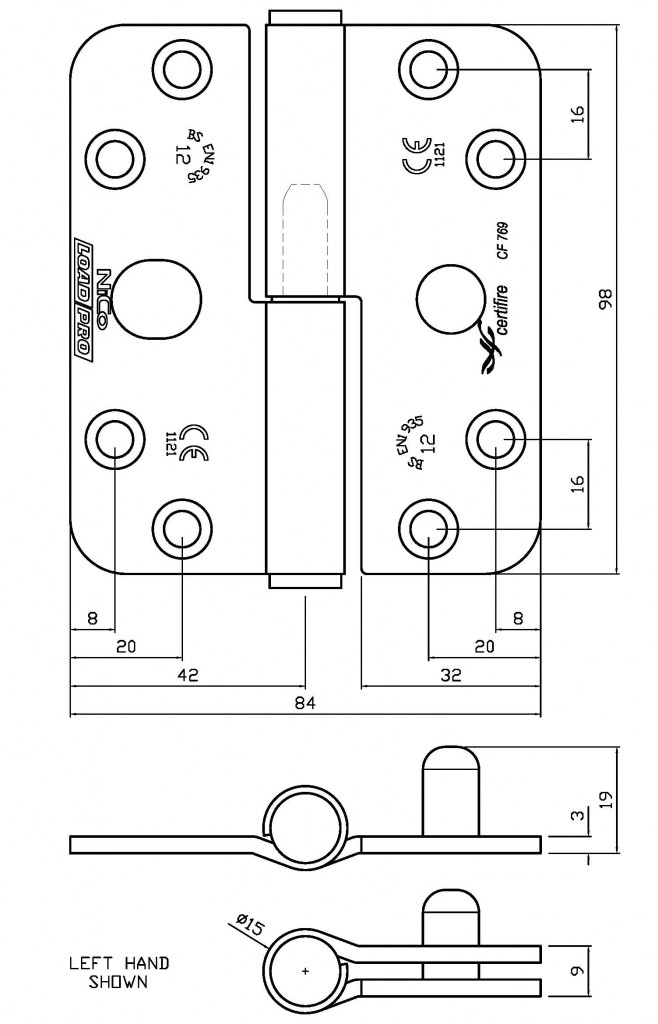

98mm x 84mm Symmetrical Security Lift Off Hinge

Providing “fit and forget” maintenance free reliability, the 4718 is the ideal hinge for specification on security doors up to 100Kg. Featuring a self-lubricating polymer bearing which guarantees the right amount of lubrication over the life of the hinge, and an 8mm pin for unsurpassed strength and reliability, the robustly engineered 4718 is the tried and tested long-life fire door security solution

Features & Benefits

• Integral Security Pin
• Self lubricating polymer bearing
• Polymer bearings provide low co-efficient of friction
• Bearings guarantee the right lubrication for the life of the hinge
• Grade: 304 stainless steel or CS4 mild steel & Supercoat
• Ideal for use in high traffic environments
• Ideal for use with fingertrap protection
• Easy alignment of door leaf and frame during fitting
• Maximum adjusted door weight: 100kg
• Recommended minimum door thickness: 44m
• Supplied with No.10 1¼” screws
• 25 year mechanical guarantee

Testing & Technical

• Made in Britain to an ISO 9001 Quality System
• UKCA and CE marked
• EN 1935: 2002 Grade 12
• UKCA Certificate Nos: 1121-CPR-UK-AC7727
• CE Certificate Nos: 2812-CPR-AC0082
• Certifire 30min & 60min Assessment Report CF769
• 30 minute Warrington Fire Assessment Report WFAR176781
• 60 minute Warrington Fire Assessment Report WFAR176781

PART NUMBERS

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.

CERTIFICATION

• PLEASE NOTE. NOT ALL CERTIFIED FINISHES ARE AVAILABLE
  FROM STOCK AND MINIMUM BATCH QUANTITIES MAY APPLY.
