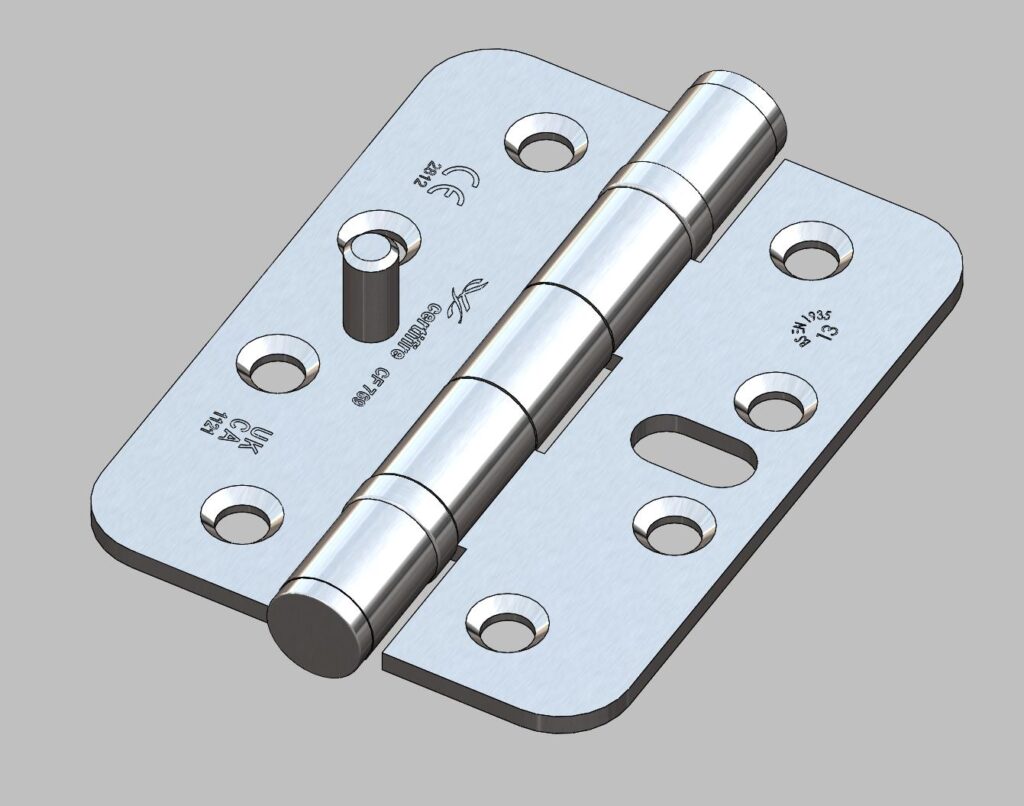

5315 Grade 13 304 Stainless Security Butt Hinge

100mm x 76mm Ball Bearing Security Butt Hinge

The 5315SEC is the ideal hinge for specification on security and outward opening fire doors up to 120kg. Made from Grade 304 Stainless Steel and featuring premium 2.5mm ball bearings, it offers excellent corrosion resistance and performance. Rigorously tested and 3rd party certified, the 5315SEC has proven long life, strength and reliability.

Features & Benefits

  • Security Stud for enhanced security
  • Premium Ball Race design
  • 2.5mm Low Friction Bearings for consistent performance
  • Grade: 304 Stainless Steel for additional corrosion resistance
  • Strong and Reliable
  • Maximum adjusted door weight: 120kg
  • Recommended minimum door thickness: 44mm
  • Supplied with stainless steel screws

Testing & Technical

  • UKCA and CE marked
  • EN 1935: 2002 Grade 13
  • UKCA Certificate Nos: 1121-CPR-UK-AC7718
  • CE Certificate Nos: 2812-CPR-AC0062
  • Certifire 30min & 60min Assessment Report CF769
  • 30 minute Fire Tested in accordance with EN 1634-1
  • 60 minute Warrington Fire Assessment Report WFAR176781

These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. Hinges should be lubricated with a light machine oil immediately after installation, and period lubrication should be conducted as required (minimum every 25,000 cycles).

PART NUMBERS

Size
100mm (4″) Radius
Type Grade 13 SEC
Length 100mm
Width Open 75mm
Thickness 3.0mm
Material Grade 304
Screw Holes 8
Boxed Range 40 x 1pair
Satin 53150R10SEC
Max. Load (2 hinges fitted) 120kg
Max. Load (3 hinges fitted) 120kg
Material 304 Stainless

CERTIFICATION

Finish
CE
UKCA
Certifire 30min & 60min
WFAR 30min & 60min
WFAR 120min STEEL DOOR
Pol/EB/Satin 2812-CPR-AC0062 1121-CPR-UK-AC7718 CF 769 176781 176781
  • PLEASE NOTE. NOT ALL CERTIFIED FINISHES ARE AVAILABLE
    FROM STOCK AND MINIMUM BATCH QUANTITIES MAY APPLY.
