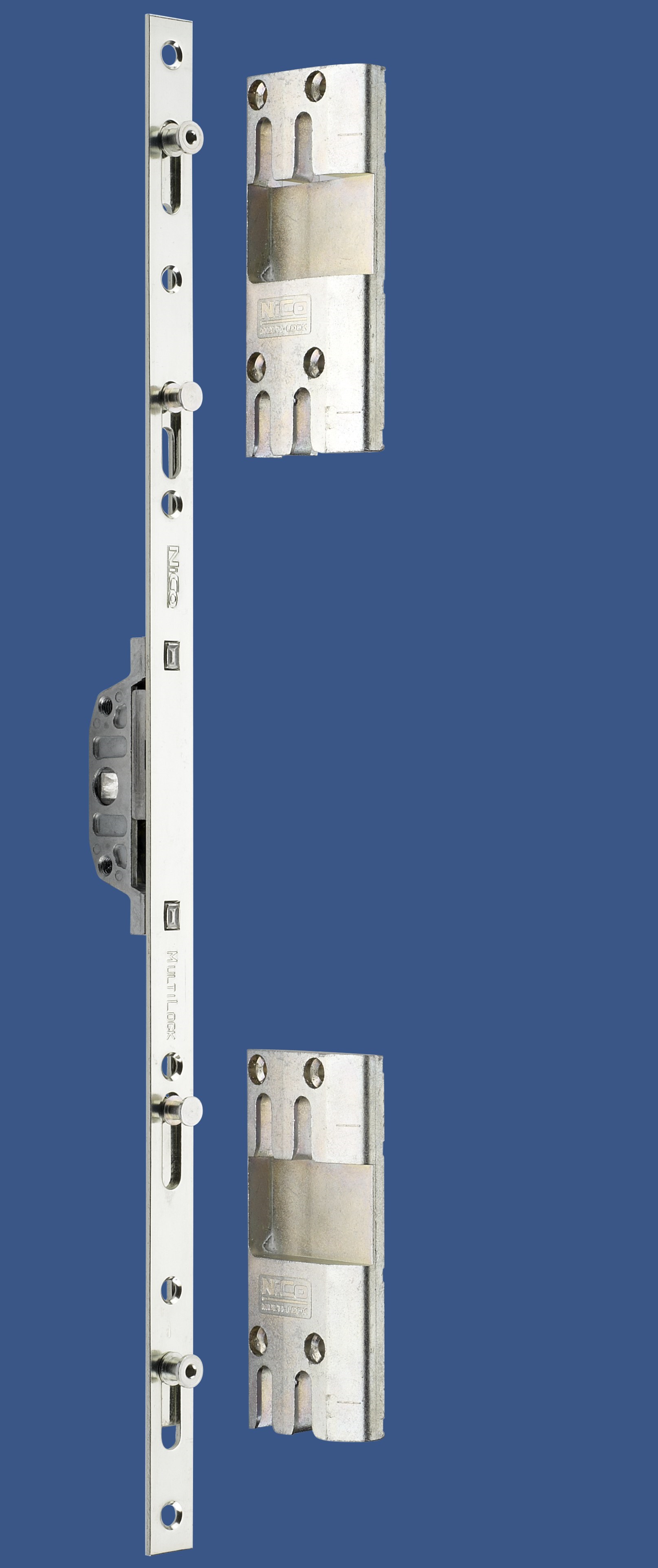

Multilock Security Espagnolette

The Nico Multilock is a high performance Security Locking System that is exceptionally strong and very easy to fit. The innovative, patented twin cam design will easily achieve the PAS 24 : 2016 Security Standard as a critical component.

A quality build and robust profile-specific keeps combine to ensure a long reliable life and light, smooth closing action. Plus, the attractive Supercoat silver finish provides excellent corrosion protection.

Features & Benefits

• Rigorously tested ( see related downloads on this page )
• Combination of adjustable and non adjustable cams to enhance security
• Enhanced security as a result of profile specific, 4 screw hole, solid zinc keeps
• Exceptional resistance to corrosion achieved by Supercoat finish
• Low handle height option for multi occupancy dwellings
• Adjustable cams ( +/- 1mm ) allow weatherseal compression
• Night vent facility provided on keeps
• Strong. smooth and reliable gearbox gives long life performance
• 10 year mechanical guarantee

Testing & Technical

• Made in Britain to an ISO 9001 Quality System
• Successfully security tested as a critical component within PAS 24 : 2016
• Secured By Design approved as a Police Preferred Specification
• Successfully tested to BS EN 1670 Grade 5 ( 480 hours ) corrosion resistance
• Successfully tested to BS EN 13126-4 for durability, strength and function
• Successfully cycle tested as a critical component within BS EN 6375 Pt 2 ( Resistance to repeated opening and closing )
• Successfully weather tested as a critical component within BS EN 6375 Pt 1 ( Air, wind and water testing )

The Multilock has been endurance tested to 3 times the British Standard requirement.

Technical Data

The Multilock is fast and easy to fit in a standard eurogroove. It features a 20mm or 22mm gearbox and eccentric cams of 7.8mm or 9mm. The cams allow weatherseal pressure adjustment of +/- 1mm. Heavy guage materials and fixing points protect against attack. An offset gearbox option ( special order ) is available for lower handle positions.

Fitting instructions are provided on the Multilock pdf in related downloads

20mm Backset Multilock

22mm Backset Multilock
